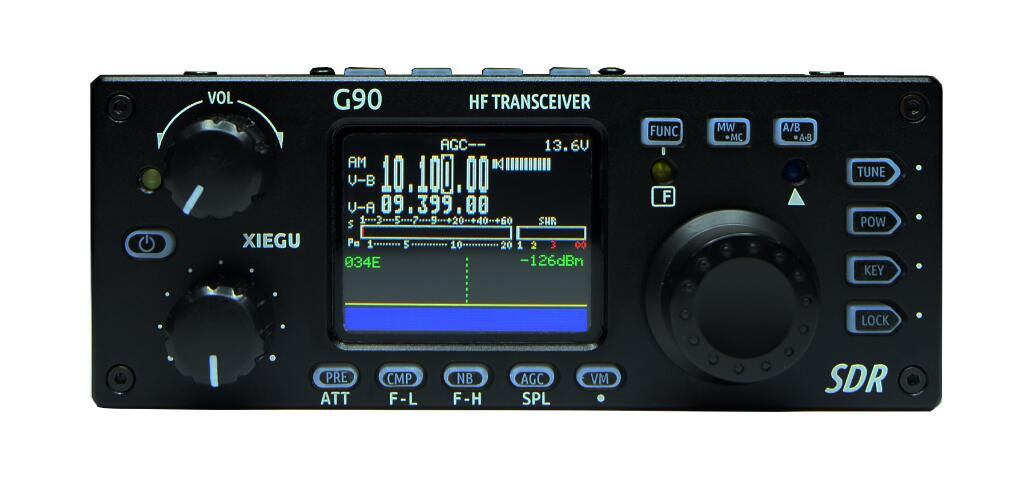

The G90 is a portable 20W (built-in automatic sky adjustment) split-head shortwave amateur radio transceiver based on SDR architecture, a new member of the Xiegu product family and the first model of the G series.
Based on SDR structure and 24bit-CODEC sampling, G90 brings excellent transceiver performance and highly configurable function experience. The detachable head design allows you to flexibly arrange the position of the host; Built-in high-performance automatic sky adjustment to meet your needs for anytime calls, so antennas are no longer a problem.
High-performance front-end narrowband ESC preselector
Covering 0.5~30MHz frequency range, SSB/CW/AM three working modes
1.8 inch high brightness color TFT LCD display
± 24K bandwidth spectrum display, waterfall display
Software-defined narrowband filter (CW mode: 300Hz)
Detachable head design
20W RF power output in the full segment
Built-in high-efficiency automatic antenna tuner
Rich interfaces, can output I/Q signals, easy to connect to XDT1
Designed with a panel + top button structure, the G90 is optimized for ease of use, eliminating the need for menus to set functions, directly through the buttons and multi-function encoder. The screen display is rich in content, all information is clear at a glance, and with the real-time spectrum display, various signal conditions are under control.
Optional accessories
XPA125B: 100W power amplifier + sky adjustment all-in-one machine
Basic specifications
Receiving frequency range: 0.5MHz~29.999999MHz Working voltage range: 12~15V DC
Transmission frequency range: all amateur frequency bands in the range of 1.8~29.999MHz Standby operating current: 750mA @ Max
Operating mode: SSB/CW/AM Transmit current: 8A @ Max
Operating temperature range: 0°C~55°C Frequency stability: ±2ppm (after 30 minutes of booting)
Machine size: 120*45*210 mm (excluding protrusions, head body combination state) Machine weight: about 1kg
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Receiver parameters
Receive sensitivity: better than 0.25uV @12dB Sinad (PRE:ON) Total dynamic range: 90dB
Frontage rejection: 60dB Audio output power: 0.5W@ 4Ω
Selectivity: SSB 2.4kHz / CW 300Hz
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Transmitter parameters
RF output power: 20W spurious rejection: ≥50dB
Carrier rejection: ≥50dB Sideband rejection: ≥50dB
